Elements

Base metal thermocouple elements are used directly as temperature sensing elements, or as replacement or component items for insertion into a protection tube.

Straight, Ceramic Insulated Elements

Elements Thermocouple, Manufacturer of Thermocouple, Thermocouple Type, Thermocouple Assemblies, Resistance Temperature Detectors, India

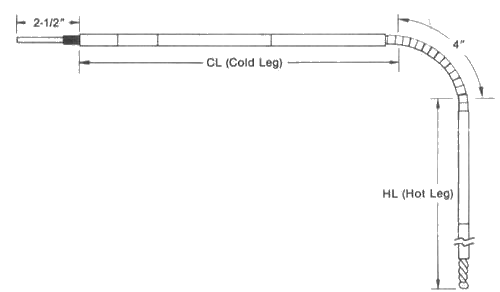

Standard 90o Angle, Ceramic Insulated Elements

Construction of standard 90o Angle Ceramic Insulated Elements, which have an approximately 4" section of bead insulation between the hot and cold legs.  This beaded section allows bending the element for placement into the elbow constructed 90o angle assemblies.

Elements Thermocouple, Manufacturer of Thermocouple, Thermocouple Type, Thermocouple Assemblies, Resistance Temperature Detectors, India

Element Construction
(Twisted Junction)

  1. Straight, Single Element

  2. 90o Angle Single Element, Two hole Ceramic insulators

  3. Bare Wire Element, No Insulators

  4. Straight, Dual Element, Two Hole Ceramic Insulators

  5. 90o Angle Dual Element, Two Hole Ceramic Insulators (2 Separate Elements)

  6. Straight Single Element, One Hole Bead Ceramic Insulators on each wire.
