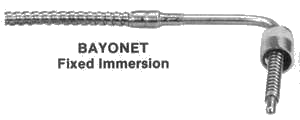

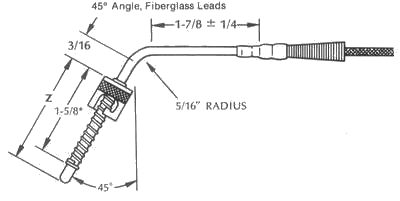

Bayonet Thermocouple Assemblies

Bayonet thermocouples have a compressible spring and locking cap for quick insertion or detachment.

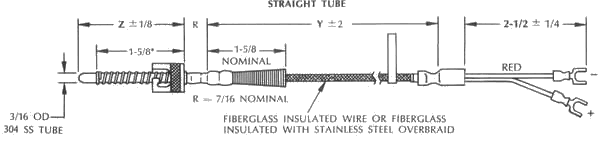

These thermocouples are flexible over their "Y" length, light weight for connection to a distant thermocouple junction box or to an instrument.
Various cold end terminations, dual element options and wire features are available.
Closed-end tubes are silver soldered for Types J, T and E, welded for Type K.  Generally rated for service to 900oF under dry conditions.  Type T maximum is 700oF.  Temperature rating does not apply to cold end terminations.
